DIN 53516 Rubber Abrasion Resistance Testing machine
The main function:
DIN abrasion tester instrument is to test the friction of surface by a particular piece of sandpaper, After
friction for a certain time, and then assess the condition of material surface weight, volume and thickness,
from this standard to assess the abrasive nature of materials. .
This DIN abrasion tester instrument is a high efficiency, good reproduction and easy to operate, applied to
test the abrasive nature of material, as such elastic material, rubber, tires, convey belt, transmit belt, sole,
synthetic leather, leather and others.
Corresponding standard:
GB/T9867,GB/T 20991,GB/T 26703,EN ISO 20344,ISO 4649,DIN 53516,BS 903:A9,SATRA TM147
Applicable industry:
Applied to test leather performance in shoes, clothing, luggage handbag industry, research laboratories,
commodity inspection, arbitration and technical supervision departments
Technical parameters:
| Model | ZL-3004 DIN abrasion resistance tester |
| dler | 150mm |
| abrasion stroke | 40 ± 0.2M |
| Horizontal displacement | 4.2mm / rotate |
| stroke | 20m/40m presetting |
| grips lateral displacement | 4.2 ± 0.04rpm |
| Idler wheel speed | 40 ± 1cpm |
| Measuring way | Auto/Manual presetting |
| load | 2.5 ± 0.1N,5 ± 0.1N,10 ± 0.1N |
| Specimen size | dia 16mm, thickness at least 6mm |
| Emery cloth Specification | 60 #, seam is less than 2mm |
| sand paper | 60 Germany |
| Dimension | 95*66*31cm |
| Power | 220v 50hz |
Machine Specifications:
| Test-arm weight | 250 ± 5 (g) |
| Testing Load | 2.5N, 7.5N |
| Diameter abrasive wheel | dia 150 ± 450L (mm) |
| emery cloth | 60 #, 425 ±473 ±1.5 (mm) |
| Wheel Speed | 40 ± 1RPM |
| Shift screw | 6 teeth / inch |
| Limit rotation | 85 rotate |
| Set rotation | 84 rotate (about 40M) |
| Return form | Electric automatic reset |
| Drive Power | 40W; 1 / 30 |
| Power | 220V 50HZ |
| Machine Dimensions | 600 ±330 ±420 (mm) |
| Machine Weight | 75kg |
Product Tags:
|
|

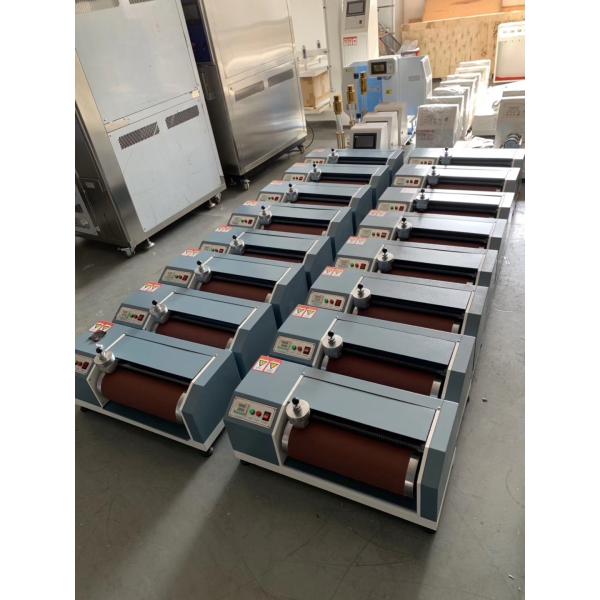

DIN 53516 Electronic Abrasion Resistance Testing Machine For Rubber / Shoes 220V 50HZ Images
|
